You can display the results of the fluid-structure co-simulation analysis.
To view fluid-structure co-simulation analysis results:
Click mouse button 3 on the co-execution named uhose.
From the menu that appears, select Results.
The output database files uhose-solid.odb and uhose-fluid.odb are opened simultaneously in the Visualization module and are overlaid in the viewport.
Select Plot
Allow Multiple Plot States to toggle off the overlay plot state.
Make the output database file uhose-solid.odb the current file.

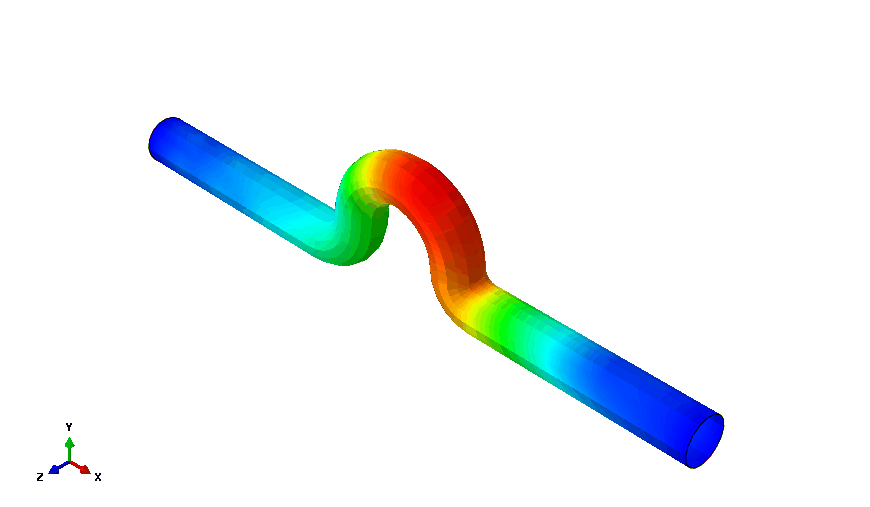

Plot the deformations, as shown in Figure E–21.
