You have been asked to model the plate shown in Figure 5–10.
It is skewed 30° to the global 1-axis, is built-in at one end, and is constrained to move on rails parallel to the plate axis at the other end. You are to determine the midspan deflection when the plate carries a uniform pressure. You are also to assess whether a linear analysis is valid for this problem. You will perform an analysis using Abaqus/Standard.The orientation of the structure in the global coordinate system and the suggested origin of the system are shown in Figure 5–10. The plate lies in the global 1–2 plane. Will it be easy to interpret the results of the simulation if you use the default material directions for the shell elements in this model?
Figure 5–11 shows the suggested mesh for this simulation.
You must answer the following questions before selecting an element type: Is the plate thin or thick? Are the strains small or large? The plate is quite thin, with a thickness-to-minimum span ratio of 0.02. (The thickness is 0.8 cm and the minimum span is 40 cm.) While we cannot readily predict the magnitude of the strains in the structure, we think that the strains will be small. Based on this information, you choose quadratic shell elements (S8R5), because they give accurate results for thin shells in small-strain simulations. For further details on shell element selection, consult “Choosing a shell element,” Section 29.6.2 of the Abaqus Analysis User's Guide.
The input file for the skew plate example is skew.inp, which is available in “Skew plate,” Section A.3. This example uses the mesh shown in Figure 5–11 by creating the node sets shown in Figure 5–12, and stores all of the the elements in an element set called PLATE.
The following steps in this example describe how the material and history information is defined in this input file. This exercise will give you a better understanding of how the various option blocks combine to define an Abaqus model. If you wish to create the entire model using Abaqus/CAE, refer to “Example: skew plate,” Section 5.5 of Getting Started with Abaqus: Interactive Edition.Before you start to build the model, decide on a system of units. The dimensions are given in cm, but the loading and material properties are given in MPa and GPa. Since these are not consistent units, you must choose a consistent system to use in your model and convert the necessary input data.
At this point we assume that you have created the basic mesh using your preprocessor. In this section you will review and make corrections to your input file, as well as include additional information, such as material data.
Model description
The following would be a suitable description in the *HEADING option for this simulation:
*HEADING Linear Elastic Skew Plate. 20 kPa Load. S.I. Units (meters, newtons, sec, kilograms)It clearly explains what you are modeling and what units you are using.
Element connectivity
Check to make sure that you are using the correct element type (S8R5). It is possible that you specified the wrong element type in the preprocessor or that the translator made a mistake when generating the input file. The *ELEMENT option block in your model should begin with the following:
*ELEMENT, TYPE=S8R5, ELSET=PLATEIn some examples, the name given for the ELSET parameter is not a descriptive name like PLATE. If necessary, you may want to change these values, because meaningful names for node and element sets make input files easy to understand.
Node sets
The three node sets shown in Figure 5–12 will be useful in completing the model of the plate. These node sets are described in the input file using *NSET option blocks.
Defining alternative material directions
If you use the default material directions, the direct stress in the material 1-direction,
, will contain contributions from both the axial stress, produced by the bending of the plate, and the stress transverse to the axis of the plate. It will be easier to interpret the results if the material directions are aligned with the axis of the plate and the transverse direction. Therefore, a local rectangular coordinate system is needed in which the local
-direction lies along the axis of the plate (i.e., at 30° to the global 1-axis) and the local
-direction is also in the plane of the plate.
As you learned in “Shell material directions,” Section 5.3, the *ORIENTATION option defines such a local coordinate system. Choose point a (see Figure 5–8) to have coordinates (10.0E–2, 5.77E–2, 0.)—so that
= tan 30°—and point b to have coordinates (–5.77E–2, 10.E–2, 0.). You must also specify which axis is not projected onto the shell surface (the
-direction in this model) as well as an additional rotation (zero using this method). The following *ORIENTATION option block creates the proper local coordinate system, named SKEW:
*ORIENTATION, NAME=SKEW, SYSTEM=RECTANGULAR 10.0E-2,5.77E-2,0.0, -5.77E-2,10.0E-2,0.0 3, 0.0Alternatively, you can define exactly the same local coordinate system by choosing point a and point b to lie on the global coordinate 1- and 2-axes and specifying an additional rotation of 30°:
*ORIENTATION, NAME=SKEW, SYSTEM=RECTANGULAR 1., 0., 0., 0., 1., 0. 3, 30.
Section properties
Since the structure is made of a single material with constant thickness, the section properties are the same for all elements. Therefore, you can use the element set PLATE (which includes all elements) to assign the physical and material properties to the elements. Since you assume that the plate is linear elastic, the *SHELL GENERAL SECTION option is more efficient than using the *SHELL SECTION option. The following element property option block defines the section properties for this example:
*SHELL GENERAL SECTION, ELSET=PLATE, MATERIAL=MAT1, ORIENTATION=SKEW 0.8E-2,
The ORIENTATION parameter tells Abaqus to use the local coordinate system named SKEW to define the material directions for the shells in element set PLATE. All element variables will be defined in the SKEW coordinate system.
Material properties
The plate is made of an isotropic, linear elastic material that has a Young's modulus of 30.0 GPa and a Poisson's ratio of 0.3. The following material option block specifies this material data:
*MATERIAL, NAME=MAT1 *ELASTIC 30.0E9, 0.3
Local directions at the nodes
While the *ORIENTATION option defines a local coordinate system for elements, you must use the *TRANSFORM option to define a local coordinate system for nodes. The two options are completely independent of each other. If a node refers to a local coordinate system defined with *TRANSFORM, all data pertaining to the node—such as boundary conditions, concentrated loads, or nodal output variables (displacements, velocities, reaction forces, etc.)—are defined in the transformed coordinate system.
The *TRANSFORM option has the following format:
*TRANSFORM, NSET=<node set name>, TYPE=<axis type> <The data line specifies the coordinates of two points, a and b, in much the same way as the *ORIENTATION option. The coordinate system defined with *TRANSFORM does not rotate as the body deforms; it is fixed in the original directions defined at the beginning of the simulation. Rectangular (TYPE=R), cylindrical (TYPE=C), and spherical (TYPE=S) coordinate systems can be specified. Use the NSET parameter to specify the node sets that use this local coordinate system.>, <
>, <
>, <
>, <
>, <
>
As shown in Figure 5–10, one end of the plate is constrained to move on rails that are parallel to the axis of the plate. Since this boundary condition does not coincide with the global axes, you must transform the nodes on this end of the plate into a local coordinate system that has an axis aligned with the plate. The following *TRANSFORM option achieves this transformation:
*TRANSFORM, NSET=ENDB, TYPE=R 10.0E-2,5.77E-2,0.0, -5.77E-2,10.0E-2,0.0This option block defines the degrees of freedom for node set ENDB in a local coordinate system whose
-axis is aligned with the long axis of the plate (i.e., the local system is rotated 30° about the global 3-axis). We now review the history definition portion of the input file. A single step is needed to define this simulation.
Step definition
Boundary conditions
The nodes at the left-hand end of the plate (node set ENDA) need to be constrained completely by the following boundary condition:
*BOUNDARY ENDA, ENCASTRE
The nodes at the right-hand end of the plate need to be constrained to model their “rail” boundary condition. Since you have transformed the nodes at this end using *TRANSFORM, you must apply the boundary conditions in the local coordinate system. To allow these nodes to move in the local 1-direction (along the axis of the plate) only, all other degrees of freedom must be constrained as follows:
ENDB, 2,6Had you not defined node sets ENDA and ENDB, you would have had to create a data line for each node.
Loading
A distributed pressure load of 20.0 kPa is applied to the plate in this simulation. As shown in Figure 5–10, the pressure acts in the negative global 3-direction. Pressure loads are applied to the faces of elements with the *DLOAD option (*DLOAD is described in Chapter 4, “Using Continuum Elements,” for the lug model example). Shell elements have only one face; therefore, the load identifier for pressure is just “P.” A positive pressure on a shell acts in the direction of the positive element normal. The shell elements in the input file from “Skew plate,” Section A.3, have normals that align with the positive global 3-axis. Thus, the following input defines the correct pressure loading in that model:
*DLOAD PLATE, P, -20000.0Since element set PLATE contains all elements in the model, this option block applies a pressure load to all elements in the model.
Output requests
If the preprocessor has generated default output request options, you should delete them. To create an output database ( .odb) file for use with Abaqus/Viewer and printed tables of the element stresses, nodal reaction forces and moments, and displacements at the midspan of the plate, the following output requests are included in the input file:
*OUTPUT, FIELD, OP=NEW *NODE OUTPUT U, RF *ELEMENT OUTPUT S, E *OUTPUT, HISTORY, OP=NEW *NODE OUTPUT, NSET=MIDSPAN U, *EL PRINT S, E, *NODE PRINT, SUMMARY=NO, TOTALS=YES, GLOBAL=YES RF, *NODE PRINT, NSET=MIDSPAN U,
Specifying the *OUTPUT option overrides the default output selections noted in the previous chapters. The option is used with the FIELD and HISTORY parameters to request field and history output to the output database file. In general, field output is used to generate contour plots, symbol plots, and deformed shape plots; history output is used for X–Y plotting. In conjunction with the *OUTPUT option, the *NODE OUTPUT option is used to request output of nodal variables and the *ELEMENT OUTPUT option is used for output of element variables.
After storing your input in a file called skew.inp, run the analysis interactively. If you do not remember how to run the analysis, see “Running the analysis,” Section 4.3.6. If your analysis does not complete, check the data file, skew.dat, for error messages. Modify your input file to remove the errors; if you still have trouble running your model, compare your input file to the one given in “Skew plate,” Section A.3.
After running the simulation successfully, look at the table of stresses in the data file, skew.dat. An excerpt from the table is shown below.
THE FOLLOWING TABLE IS PRINTED FOR ALL ELEMENTS WITH TYPE S8R5 AT THE INTEGRATION POINTS
ELEMENT PT SEC FOOT- S11 S22 S12
PT NOTE
1 1 1 OR -4.2759E+07 -9.3051E+06 6.7584E+06
1 1 3 OR 4.2759E+07 9.3051E+06 -6.7584E+06
1 2 1 OR -7.4724E+07 -2.7832E+06 1.0599E+07
1 2 3 OR 7.4724E+07 2.7832E+06 -1.0599E+07
1 3 1 OR -7.3273E+07 -2.8832E+07 2.1403E+07
1 3 3 OR 7.3273E+07 2.8832E+07 -2.1403E+07
1 4 1 OR -8.2885E+07 -1.8951E+07 1.4786E+07
1 4 3 OR 8.2885E+07 1.8951E+07 -1.4786E+07
:
:
114 1 1 OR -8.2885E+07 -1.8951E+07 1.4786E+07
114 1 3 OR 8.2885E+07 1.8951E+07 -1.4786E+07
114 2 1 OR -7.3273E+07 -2.8832E+07 2.1403E+07
114 2 3 OR 7.3273E+07 2.8832E+07 -2.1403E+07
114 3 1 OR -7.4724E+07 -2.7832E+06 1.0599E+07
114 3 3 OR 7.4724E+07 2.7832E+06 -1.0599E+07
114 4 1 OR -4.2759E+07 -9.3051E+06 6.7584E+06
114 4 3 OR 4.2759E+07 9.3051E+06 -6.7584E+06
MAXIMUM 2.3826E+08 1.0326E+08 7.0025E+07
ELEMENT 4 4 4
MINIMUM -2.3826E+08 -1.0326E+08 -7.0025E+07
ELEMENT 4 4 4
OR: *ORIENTATION USED FOR THIS ELEMENTThe second column (SEC PT—section point) identifies the location in the element where the stress was calculated. Section point 1 lies on the SNEG surface of the shell, and section point 3 lies on the SPOS surface. The letters OR appear in the FOOTNOTE column, indicating that an *ORIENTATION option has been used for the element: the stresses refer to a local coordinate system.Check that the small-strain assumption was valid for this simulation. The axial strain corresponding to the peak stress is
0.008. Because the strain is typically considered small if it is less than 4 or 5%, a strain of 0.8% is well within the appropriate range to be modeled with S8R5 elements.
Look at the reaction forces and moments in the following table:
THE FOLLOWING TABLE IS PRINTED FOR ALL NODES
NODE FOOT- RF1 RF2 RF3 RM1 RM2 RM3
NOTE
1 0.000 0.000 -109.9 1.775 -0.3283 0.000
2 0.000 0.000 6.448 7.597 -36.46 0.000
3 0.000 0.000 239.9 6.568 -35.46 0.000
4 0.000 0.000 455.4 6.806 -88.26 0.000
5 0.000 0.000 260.5 6.948 -51.13 0.000
6 0.000 0.000 750.8 8.305 -126.5 0.000
7 0.000 0.000 73.90 8.749 -62.23 0.000
8 0.000 0.000 2286. 31.06 -205.8 0.000
9 0.000 0.000 37.19 -1.610 -76.45 0.000
1201 0.000 0.000 37.19 1.610 76.45 0.000
1202 0.000 0.000 2286. -31.06 205.8 0.000
1203 0.000 0.000 73.90 -8.749 62.23 0.000
1204 0.000 0.000 750.8 -8.305 126.5 0.000
1205 0.000 0.000 260.5 -6.948 51.13 0.000
1206 0.000 0.000 455.4 -6.806 88.26 0.000
1207 0.000 0.000 239.9 -6.568 35.46 0.000
1208 0.000 0.000 6.448 -7.597 36.46 0.000
1209 0.000 0.000 -109.9 -1.775 0.3283 0.000
TOTAL 0.000 0.000 8000. 3.7096E-11 -1.8769E-09 0.000
The reaction forces were written in the global coordinate system because of how we requested the reaction force output (GLOBAL=YES on the *NODE PRINT option). Otherwise, the reactions for the nodes would have been written in the local coordinate system. Check that the sum of the reaction forces and reaction moments with the corresponding applied loads is zero. The nonzero reaction force in the 3-direction equilibrates the vertical force of the pressure load (20 kPa × 1.0 m × 0.4 m). In addition to the reaction forces, the pressure load causes self-equilibrating reaction moments at the constrained rotational degrees of freedom.The table of displacements (which is not shown here) shows that the mid-span deflection across the plate is 5.3 cm, which is approximately 5% of the plate's length. By running this as a linear analysis, we assume the displacements to be small. It is questionable whether these displacements are truly small relative to the dimensions of the structure; nonlinear effects may be important, requiring further investigation. In this case we need to perform a geometrically nonlinear analysis, which is discussed in Chapter 8, “Nonlinearity.”
This section discusses postprocessing with Abaqus/Viewer. Both contour and symbol plots are useful for visualizing shell analysis results. Since contour plotting was discussed in detail in Chapter 4, “Using Continuum Elements,” we use symbol plots here.
Start Abaqus/Viewer by typing the following command at the operating system prompt:
abaqus viewer odb=skew
By default, Abaqus/Viewer plots the undeformed shape of the model.
Element normals
Use the undeformed shape plot to check the model definition. Check that the element normals for the skew-plate model were defined correctly and point in the positive 3-direction.
To display the element normals:
From the main menu bar, select Options
Common; or use the
tool in the toolbox.
The Common Plot Options dialog box appears.
Click the Normals tab.
Toggle on Show normals, and accept the default setting of On elements.
Click OK to apply the settings and to close the dialog box.
The default view is isometric. You can change the view using the options in the view menu or the view tools (such as
) from the View Manipulation toolbar.
To change the view:
From the main menu bar, select ViewSpecify.
The Specify View dialog box appears.
From the list of available methods, select Viewpoint.
Enter the
-,
- and
-coordinates of the viewpoint vector as –0.2, –1, 0.8 and the coordinates of the up vector as 0, 0, 1.
Click OK.
Abaqus/Viewer displays your model in the specified view, as shown in Figure 5–13.
Symbol plots
Symbol plots display the specified variable as a vector originating from the node or element integration points. You can produce symbol plots of most tensor- and vector-valued variables. The exceptions are mainly nonmechanical output variables and element results stored at nodes, such as nodal forces. The relative size of the arrows indicates the relative magnitude of the results, and the vectors are oriented along the global direction of the results. The symbol plot legend shows how each arrow color corresponds to a specific range of values. You can plot results for the resultant of variables such as displacement (U), reaction force (RF), etc.; or you can plot individual components of these variables.
Before proceeding, suppress the visibility of the element normals.
To generate a symbol plot of the displacement:
From the list of variable types on the left side of the Field Output toolbar, select Symbol.
From the list of output variables in the center of the toolbar, select U.
From the list of vector quantities and selected components, select U3.

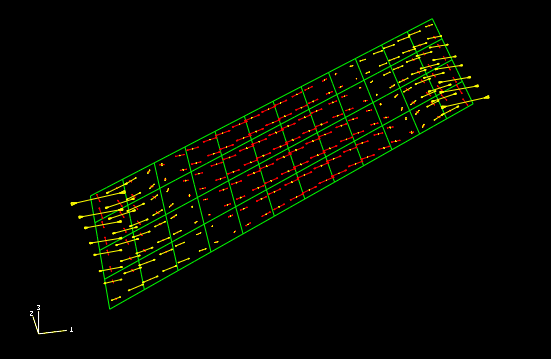

Abaqus/Viewer displays a symbol plot of the displacement vector resultant on the deformed model shape.
The default shaded render style obscures the arrows. An unobstructed view of the arrows can be obtained by changing the render style to Wireframe using the Common Plot Options dialog box. If the element normals are still visible, you should turn them off at this time.
The symbol plot can also be based on the undeformed model shape. From the main menu bar, select PlotSymbolsOn Undeformed Shape.
A symbol plot on the undeformed model shape appears, as shown in Figure 5–14.
You can plot principal values of tensor variables such as stress using symbol plots. A symbol plot of the principal values of stress yields three vectors at every integration point, each corresponding to a principal value oriented along the corresponding principal direction. Compressive values are indicated by arrows pointing toward the integration point, and tensile values are indicated by arrows pointing away from the integration point. You can also plot individual principal values.
To generate a symbol plot of the principal stresses:
From the list of variable types on the left side of the Field Output toolbar, select Symbol.
From the list of output variables in the center of the toolbar, select S.
From the list of tensor quantities and components, select All principal components as the tensor quantity.
Abaqus/Viewer displays a symbol plot of principal stresses.
From the main menu bar, select OptionsSymbol; or use the Symbol Options
tool in the toolbox to change the arrow length.
The Symbol Plot Options dialog box appears.
In the Color & Style page, click the Tensor tab.
Drag the Size slider to select 2 as the arrow length.
Click OK to apply the settings and to close the dialog box.
The symbol plot shown in Figure 5–15 appears.
The principal stresses are displayed at section point 1 by default. To plot stresses at nondefault section points, select ResultSection Points from the main menu bar to open the Section Points dialog box.
Select the desired nondefault section point for plotting.
In a complex model, the element edges can obscure the symbol plots. To suppress the display of the element edges, choose Feature edges in the Basic tabbed page of the Common Plot Options dialog box.
Figure 5–16 shows a symbol plot of the principal stresses at the default section point with only feature edges visible.
Material directions
Abaqus/Viewer also allows you visualize the element material directions. This feature is particularly useful if you would like to verify that the material directions were assigned correctly in the simulation.
To plot the material directions:
From the main menu bar, select PlotMaterial OrientationsOn Undeformed Shape; or use the
tool in the toolbox.
The material orientation directions are plotted on the undeformed shape. By default, the triads that represent the material orientation directions are plotted without arrowheads.
From the main menu bar, select OptionsMaterial Orientation; or use the Material Orientation Options
tool in the toolbox to display the triads with arrowheads.
The Material Orientation Plot Options dialog box appears.
Set the Arrowhead option to use filled arrowheads in the triad.
Click OK to apply the settings and to close the dialog box.
Use the predefined views available in the Views toolbar to display the plate as shown in Figure 5–17. In this figure, perspective is turned off. To turn off perspective, click the
tool in the View Options toolbar.
Tip:
If the Views toolbar is not visible, select ViewToolbarsViews from the main menu bar.
By default, the material 1-direction is colored blue, the material 2-direction is colored yellow, and, if it is present, the material 3-direction is colored red.
Evaluating results based on tabular data
As noted previously, a convenient alternative to writing printed data to the data ( .dat) file is to generate a tabular report using Abaqus/Viewer. With the aid of display groups, create a tabular data report of the whole model element stresses (components S11, S22, and S12), the reaction forces and moments at the supported nodes (sets ENDA and ENDB), and the displacements of the midspan nodes (set MIDSPAN). The stress data are shown below.
Field Output Report
Source 1
---------
ODB: skew.odb
Step: Step-1
Frame: Increment 1: Step Time = 2.2200E-16
Loc 1 : Integration point values at shell general ... : SNEG, (fraction = -1.0)
Loc 2 : Integration point values at shell general ... : SPOS, (fraction = 1.0)
Output sorted by column "Element Label".
Field Output reported at integration points for part: PLATE-1
Element Int S.S11 S.S11 S.S22 S.S22 S.S12 S.S12
Label Pt @Loc 1 @Loc 2 @Loc 1 @Loc 2 @Loc 1 @Loc 2
-----------------------------------------------------------------------------------------------------
1 1 -42.7593E+06 42.7593E+06 -9.30515E+06 9.30515E+06 6.75836E+06 -6.75836E+06
1 2 -74.7242E+06 74.7242E+06 -2.78322E+06 2.78322E+06 10.5987E+06 -10.5987E+06
1 3 -73.2731E+06 73.2731E+06 -28.832E+06 28.832E+06 21.4032E+06 -21.4032E+06
1 4 -82.8849E+06 82.8849E+06 -18.9513E+06 18.9513E+06 14.7861E+06 -14.7861E+06
.
.
114 1 -82.8849E+06 82.8849E+06 -18.9513E+06 18.9513E+06 14.7861E+06 -14.7861E+06
114 2 -73.2731E+06 73.2731E+06 -28.832E+06 28.832E+06 21.4032E+06 -21.4032E+06
114 3 -74.7242E+06 74.7242E+06 -2.78322E+06 2.78322E+06 10.5987E+06 -10.5987E+06
114 4 -42.7593E+06 42.7593E+06 -9.30515E+06 9.30515E+06 6.75836E+06 -6.75836E+06
Minimum -238.256E+06 -90.2214E+06 -103.26E+06 -10.5215E+06 -18.8595E+06 -70.0247E+06
At Element 4 54 4 63 81 111
Int Pt 3 3 1 1 2 2
Maximum 90.2214E+06 238.256E+06 10.5215E+06 103.26E+06 70.0247E+06 18.8595E+06
At Element 54 4 63 4 111 81
Int Pt 3 3 1 1 2 2
The reaction forces and moments are listed in the following table:
Field Output Report
Source 1
---------
ODB: skew.odb
Step: Step-1
Frame: Increment 1: Step Time = 2.2200E-16
Loc 1 : Nodal values from source 1
Output sorted by column "Node Label".
Field Output reported at nodes for part: PART-1-1
Node RF.RF1 RF.RF2 RF.RF3 RM.RM1 RM.RM2 RM.RM3
Label @Loc 1 @Loc 1 @Loc 1 @Loc 1 @Loc 1 @Loc 1
-------------------------------------------------------------------------------------
1 0. 0. -109.912 1.77484 -328.266E-03 0.
2 0. 0. 6.44824 7.59742 -36.4615 0.
3 0. 0. 239.923 6.5683 -35.4597 0.
4 0. 0. 455.379 6.80581 -88.2614 0.
5 0. 0. 260.543 6.94783 -51.1276 0.
6 0. 0. 750.833 8.30465 -126.458 0.
7 0. 0. 73.904 8.74902 -62.2273 0.
8 0. 0. 2.28569E+03 31.0634 -205.759 0.
9 0. 0. 37.1932 -1.6098 -76.4492 0.
1201 0. 0. 37.1932 1.6098 76.4492 0.
1202 0. 0. 2.28569E+03 -31.0634 205.759 0.
1203 0. 0. 73.904 -8.74902 62.2273 0.
1204 0. 0. 750.833 -8.30465 126.458 0.
1205 0. 0. 260.543 -6.94783 51.1276 0.
1206 0. 0. 455.379 -6.80581 88.2614 0.
1207 0. 0. 239.923 -6.5683 35.4597 0.
1208 0. 0. 6.44824 -7.59742 36.4615 0.
1209 0. 0. -109.912 -1.77484 328.266E-03 0.
Minimum 0. 0. -109.912 -31.0634 -205.759 0.
At Node 1209 1209 1 1202 8 1209
Maximum 0. 0. 2.28569E+03 31.0634 205.759 0.
At Node 1209 1209 8 8 1202 1209
Total 0. 0. 8.00000E+03 0. 0. 0.
