Description: Abaqus/CAE now includes boundary conditions among the attributes that you can display when you open a model database in the Visualization module. The Field Output toolbar displays a (B) before the name of each boundary condition that is available for display in the current step. For boundary conditions that include degrees of freedom, such as displacement/rotation, you can select the individual degree of freedom you want to display after selecting the boundary condition.

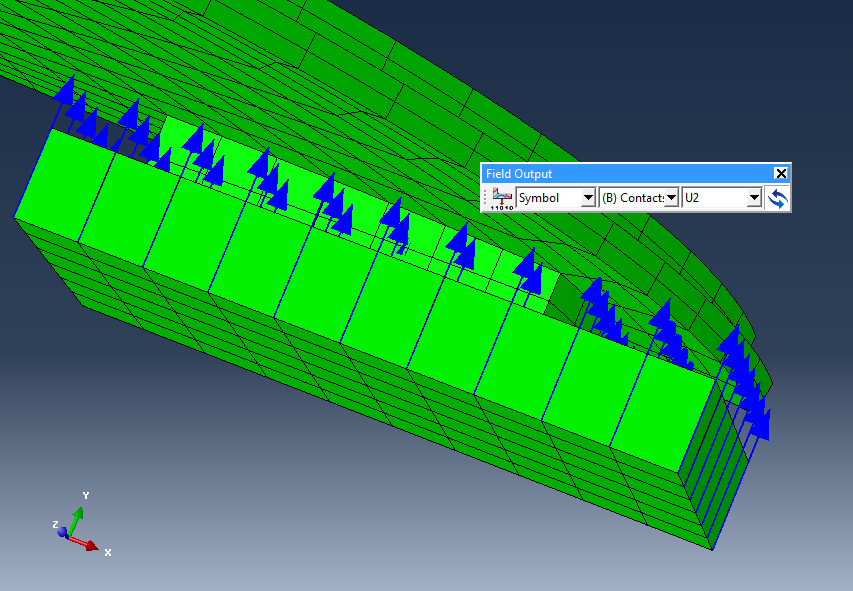

Figure 2–1 shows an example in which the U2 degree of freedom is displayed for a displacement boundary condition named Contacts. The Field Output toolbar is included in the example to show how the individual values can be selected.

Visualization module:
    Results Tree: Model Databases: model name: select boundary condition from the Field Output toolbar
